Produktbeschreibung
- Replace VAS 6154a, Works for all VAG Brands from 1995 to 2023 Equip with 2Years hardware warranty
- Supports WIFI and USB Connection
- VNCI 6154A Work with driver, Don't need driver manager.
- Software Version : V23.0.1 Engineer Version : V17.01 (Including One Time Free Activation, for Second Activation , need to Pay cost)
V23.0.1 VNCI 6154A V-A-G Diagnostic Tool Support DOIP CAN FD Protocol Coding Programming from 1995-2023
VNCI 6154A V-A-G Introduction
VNCI 6154A (red SVCI 6154A) is the OEM 6154A Diagnostic Adapter that is compatible with lastest V11 O-DIS-S. It perfectly replaces VAS 5054A and added supports CANFD, DOIP Protocol. VNCI 6154A is a universal diagnostic interface for the vehicles of the Volkswagen Group including VW, AUDI, SKODA, SEAT, Bentley, and Lamborghini.
Highlights of VNCI 6154A
►VNCI 6154A Work with driver , Don't need driver manager .
►With base station/hotspot mode switching button.
►Free license until 2030 year
►Works for all VAG Brands from 1995 to 2023
►Supports WiFi, WLAN and USB Connection
►Supports win10 64bit systems.
►FULL Multilanguage edition covered 22 languages: English (GB), English (US), French (FR), German (DE), Spanish (ES), Russian (RU), Greek (GR), Danish (DK), Croatian (HR), Italian (I), Hungarian (HU), Netherlands (NL), Polish (PL), Portugal (PT), Romanian (RO), Slovenian (SLO), Finish (FI), Swedish (SW), Turkish (TR), Czech (CZ), Japanese (JP), Chinese (CN), Korean (KO).
►Compatible with O-DIS-S V9.1.0, V10.0, V11.0,V23.0.1; O-DIS-E: V14.1/V15.0/V16.0/V17.01
►Online/Offline programming
►Flashing of hidden features
►Support all service and engineer function
►Compatible with latest O-DIS-S V23.0.1
►Tested working with O-DIS 23 after firmware upgrade (we don't provide o-dis 23)
►System Requirements:
Windows10 64-bit professional edition
4GB of memory
At least 100GB of free space on the C driver
GOOD NEWS
Manager required Software installed Plug and paly doip is faster and completely overwritten[SVCI 6154].
Kindly Note
1.PLEASE INSTALL ON WINDOES 10 AND MAKE SURE YOUR C:/DRIVER HAVE 50GB SPACE.
2.We have Software-S 23.0.1 and Software-E 17.01 files to provide
3.SVCI 615A not J2534 Passthus bacause it load with newer vesion Firemware.
What is the difference between NEW 6154 DOIP Version and normal 6154?
DOIP 6154 can supports DOIP dignose , especial it can support 2018 to 2020 new cars ,DOIP 6154 supports more protocols then the old 6154.
New Type VNCI 6154A Fixed some bugs
1.Fixed that Interface heats up after long time ues (lost firmware)
2.Fully Supported CAN FD and Doip protocols.
3.Compatible with Oiginal software all versions driver(Old 6154 only compatible with V24 Driver).
4.Upgrade to suppot -S and -E V17.01
5.Directly use and no need Driver Manager.

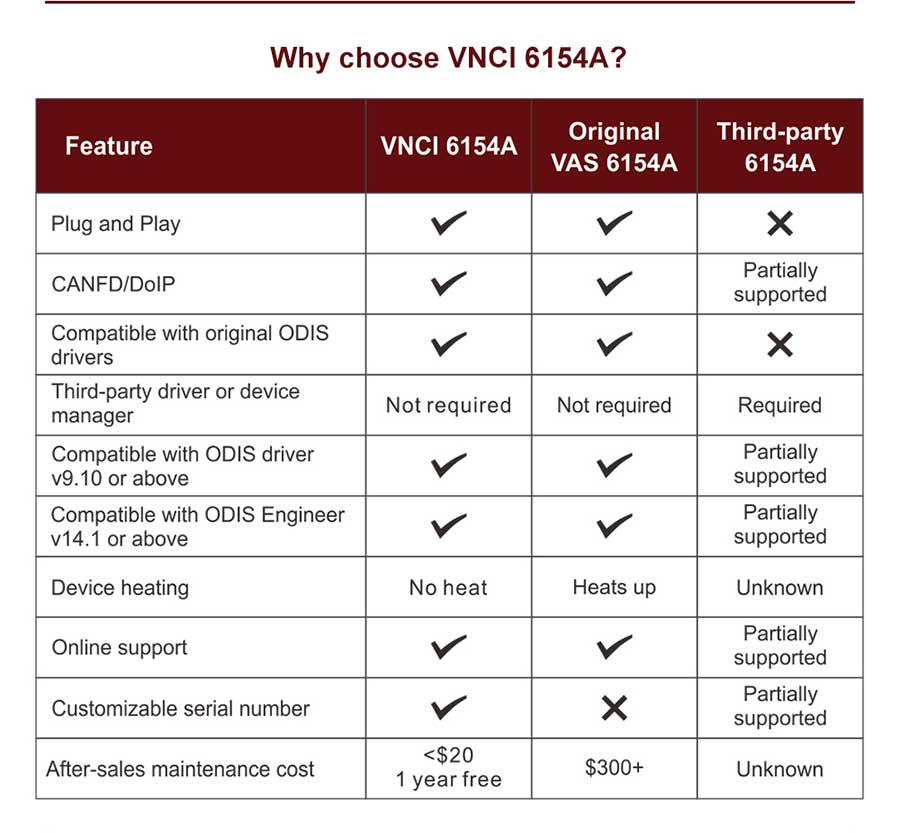

What's the difference between VNCI6154A,original V-A-S 6154a and other 3rd parties 6154a V-A-G VW Audi Skoda Seat diagnostic tool ?
| Products |
VNCI 6154A |
Original 6154A |
Other 3rd Party 6154A |
| Plug and Play |
Yes |
Yes |
No |
| CAN FD Protocol |
Yes |
Yes |
Partially Supported |
| Doip Protocol |
Yes |
Yes |
Partially Supported |
| Compatible with original ODIS drivers |
Yes |
Yes |
NO |
| 3rd party driver or Device Manager |
No |
No |
Yes |
| Compatible with origial latest ODIS-S Service software |
Yes |
Yes |
Partially Supported |
| Compatible with original latest ODIS-E engineering software |
Yes |
Yes |
Partially Supported |
| Device heating |
No |
No |
Yes |
| Online Programming |
Yes |
Yes |
Partially Supported |
| Customize serial number |
Yes,change SN |
No |
Partially Supported |
| Operating System |
Win10 64bit |
Win7,Win8,Win10 |
Win7,Win8,Win10 |
| Passthru J2534 |
No |
Yes |
Partially supported |
| Connection |
USB,WIFI,WLAN |
USB,WIFI,WLAN |
USB,WIFI |
| Update Firmware |
Update firmware online |
Yes |
Partially supported |
VNCI 6154A V-A-G Features
No need to replace the driver, no need for third-party software, plug and play.

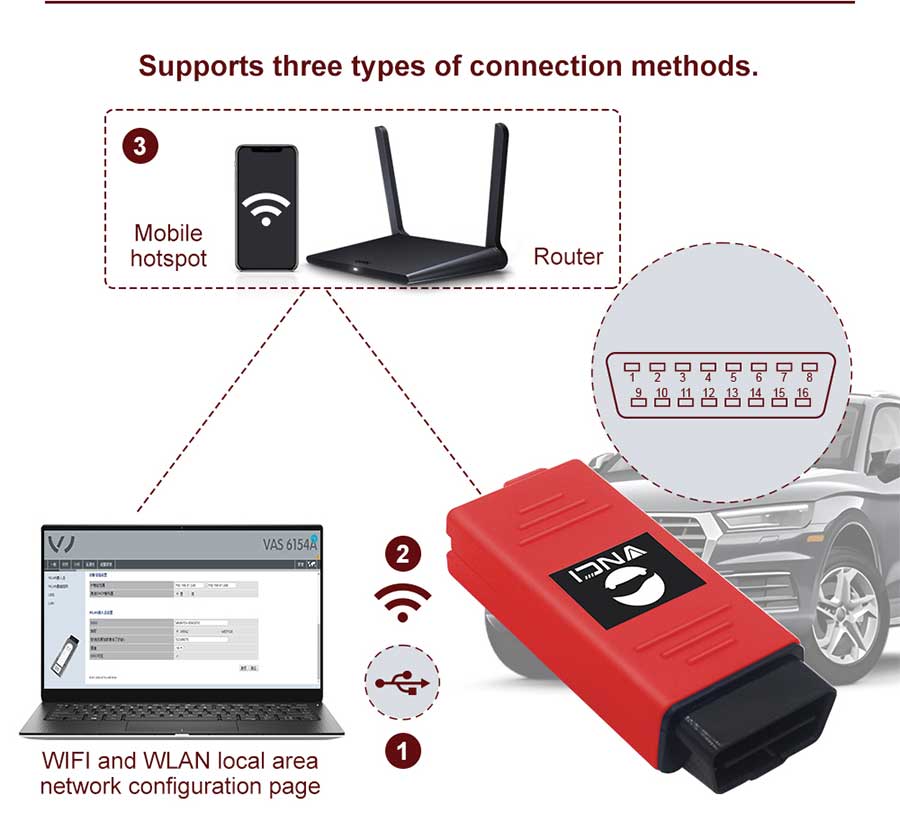

Three connection methods to adapt to various scenarios
USB Connection Mode: Connect via the USB cable.
AP Direct Connection Mode: Connects to a computer via the built-in WIFI of VNCI , similar to Bluetooth connection.
Base station Connection Mode: Connect the VNCI device and the computer to the same local area network.

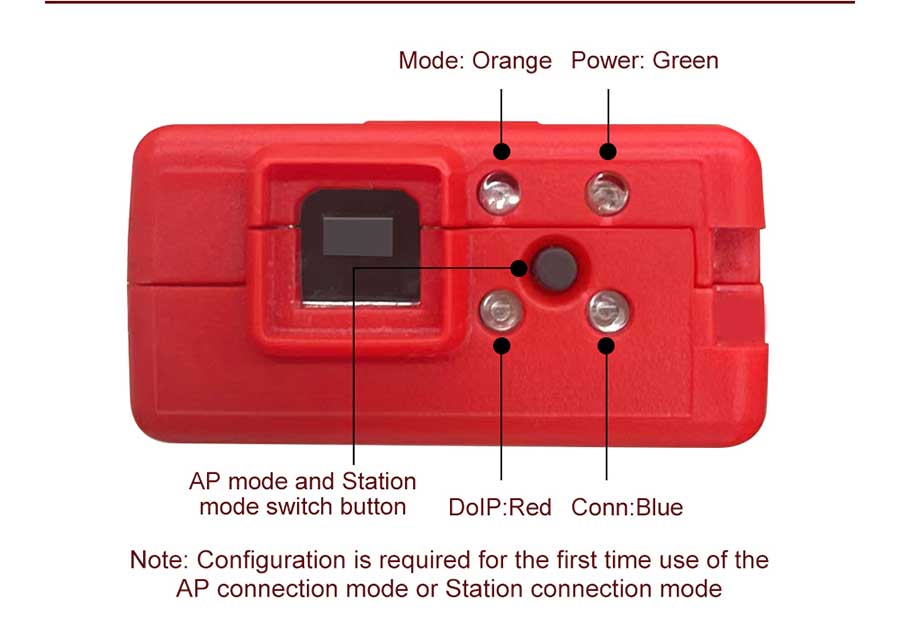

AP connection mode and station connection mode can be switched through the device button.
Three connection methods to adapt to various scenarios: USB connection mode, AP direct connection mode, Base station connection mode.
Full-featured and Excellent Performance,
Covering all Volkswagen Group models from 1995 to 2023 and beyond.
Stability, reliability, and repairability are far superior to the VAS 6154A.
Support DoIP protocol,
Support CAN FD protocol
Support online function
Plug and play
Capable of handling large data flashing.
100% support for all factory function.
VNCI 6154A V-A-G Functions
Online function
Clear fault codes
Flashing of hidden features
Coding and programming
Covering most of the models under Volkswagen Group's automotive brands
Support Service v9.10/v10.0/v11.0+
Support Engineer v14.1/v15.0/v16.0+
100% Support DoIP protocol
100% Support CAN FD protocol
Support KWP2000/UDS/CAN/K-Line......etc protocol
100% support all protocols
Vehicle diagnosis
Online/Offline programming
Flashing of hidden features
Support all service and engineer function
VNCI 6154A Covered Models
Volkswagen: 1995Y-2023MY+
Audi: 1995MY-2023MY+
Seat: 1995MY-2023MY+
Skoda: 1995Y-2023MY+
Bentley: 1995MY-2023MY+
Lamborghini: 1995MY-2023MY+
MAN: 1995MY-2023MY+
New Type (Red VNCI ) Fixed some bugs
- Fixed that Interface heats up after long time use (lost firmware)
- Fully Supported CAN FD and Doip protocols
- Compatible with Or all versions driver(Old only compatible with Original V24 Driver)
- Upgrade to support -S
- Directly use with and no need Driver Manager
Why should we choose VNCI 6154A ?
System Requirements
Win10 64-bit professional edition
4GB memory
At least 100GB of free space on the C drive,
Package Includes
1pc x VNCI 6154A
1pc x USB Cable
Customer Questions & Answers
Question1:What software can support?
Answer:The Latest Version is , Compatiable with Engineer:
Question2:there is no CD driver on the package?
Answer:Yes, No CD included. VNCI Work with oil driver, No need driver manager.
Question3:Does it provide connection to 2023 model 2022 model vehicles?
Answer:VNCI Cover for all Volkswagen Group models from 1995 to 2024 and beyond.
Question4:How can i connect the VNCI ?
Answer:VNCI Supports WiFi, WLAN and USB Connection.
Question5:What Operating System can be use for VNCI ?
Answer:VNCI need to use on the follwoing Operation System:
Win10 64bit Professional Edition
4GB memory
At least 100GB free space on the C drive
Contact Us
Email: Sales@CarOBD.deFacebook: https://www.facebook.com/carobd.de/Whatsapp: +86 19947637411 CarOBD.de QRcode
Scan the QRcode,feel free to contact us on your smartphone.Shipping Warranty 1) EU Warehouse Shipping: for Germany Customers, will take 2-3 working days to arrive.
for the other EU Countries Customers, will take 3-5 working days with Free Tax. We have stock in our Czech warehouse for most items. All Items titled "EU Ship" are ship from our Czech warehouse.
2) Yanwen Express: 8-12 working days. Free Tax for European Countries.The tax was pre-paid by us, when package reached, there's free tax no extra fee for customers.
(Due to high custom tax in European Countries,Like Germany, Greece,Romania,Sweden,France,etc, we will use Yanwen express as first option, if you need faster DHL shipment,please contact us ,thank you)
3) DHL Shipping: 5-7 working days. For the items have no stock in EU warehouse and customer wants to pay tax ,we will ship it by DHL. We will declare a reasonable value on the invoice to help your clearance.
4) 4PX Postal Service : 7-10 working days. For the Price below €100, we will ship it to you buy Airmail.
Technischer Service
Part 1: How to Install VNCI 6154A ODIS Software V10
Part 2: How to Update VNCI 6154A Firmware
Part 3: How to change VNCI 6154A serial number for online programming
Part 4: VCNI 6154A vs Original VAS 6154A vs Other 6154A
How to Install VNCI 6154A ODIS Software?
Operating system:
- Win10 64-bit Professional Edition
- 4GB memory
- At least 100GB of free space on the C drive
ODIS installation for VNCI 6154A:
After downloading, there are 5 items in the ODIS 10.0 folder.
VCX Driver
ODIS10.0 license
ODIS-Service_update_10_0_0-ECU_100000.501.190_20221101
OffboardDiagSetup-Service_VWMCD_10_0_0-0501_1
Quickly Start
Step 1: Install OffboardDiagSetup-Service
Run the application
Select language, target platform (standard PC/notebook), diagnostic interface (VAS 6154)
And enter the Host name for VAS6154
Extract ODIS 10.0 license
Then select license.dat file
Tick “Create a folder in the start menu” to start installing
Wait a moment till the installation process is completed.
Step 2: Copy plugins and offboardDiagLauncher and paste them to Offboard_Diagnostic_Information_System_ Service
Step 3:Extract ODIS-Service_update_10_0-0-ECU_100000.501.190_20221101
Step 4: Run Offboard Diagnostic Information System program
Select local directory- D disk/ODIS 10.0/ODIS-Service_update_10_0_0 ECU_100000.501.190_20221101
Select language
Then next download the files ODIS data and import the database
Step 5: Restart the computer now or later
Step 6: Extract Quickly Start
Then open the license standalone
Click “解压” (uncompress)
Extract 11 desktop shortcut icon
Copy the 11 desktop shortcut icon and paste it on desktop
Step 7: Install VNCI 6154A driver
Go to this PC>> New volume (D)>> ODIS 10.0>> VCX Driver
Open VNCI_6154A_DevMngr_Setup_x86_2v3 application to install
Select language, destination location, components, and start menu folder (VNCI 6154A Device Manager)
Select additional tasks
Then ready to install and wait until the installation process is done
Step 8: After installation, connect VNCI 6154A VAG diagnostic tool to ECU and computer correctly
Go to computer management>> Device Manager>> Network adapters to check if the VAS6154 (USB) is there
If yes, that means the driver is installed successfully.
Then you can run offboard diagnostic information system service to diagnose cars.
How to Update VNCI 6154A device Firmware?
VNCI 6154A firmware and server software can be updated online via VAS6154A Device Manager.
(* ODIS software update by link. Server software update online)
Run VNCI 6154A Device Manager
Press Upgrade to check if there is new software and firmware available.
Press Upgrade to update service software and firmware.
The 6154 Device Manager also allows changing device serial for online programming.
Users should have original odis equipment with genuine S/N.
Change serial number must enable internet connection.
Points are required to change serial number (1 point= 1 S/N)
How to Change VNCI 6154A serial number?
Each vnci 6154a comes with 1 free point to change serial number for once free (ONLY). The serial number you desire to change must be coordinated with S/N of the original equipment.
If need to change 2nd serial number, users have to pay for recharge points.
Enable network, go to Change SN function. Check the available points, if there are remaining points, input New S/N (original device S/N), press OK and confirm.
